The System Core
Hubs, racks and schematics. The infrastructure behind the finish.
- Type
- AV head-end & infrastructure
- Scope
- Racks, schedules & schematics
- Tools
- Rack elevations / Cable schedules / DMX/lighting schematics / Module layouts

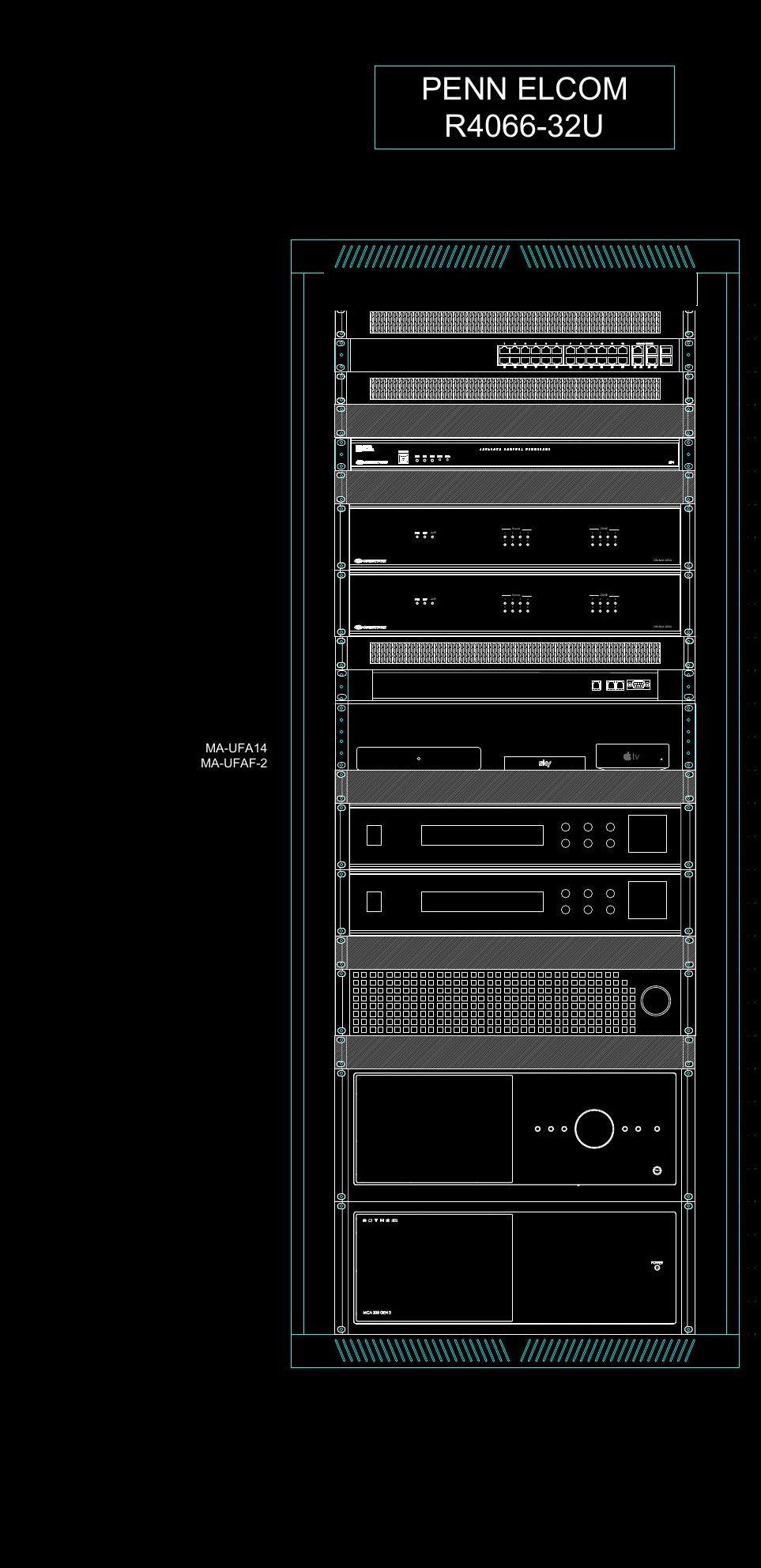

The infrastructure behind the finish: rack elevations, module layouts, cable schedules and lighting/DMX schematics. Every head-end is documented so the system installs predictably, powers cleanly and stays serviceable for the life of the project.
Behind the finish
Make the rack, modules and connections legible as a serviceable system.
Documentation
Pair the equipment elevation with a connection schedule.
Source scope
Selected design documentation, not a completed field-test report.
Drawings

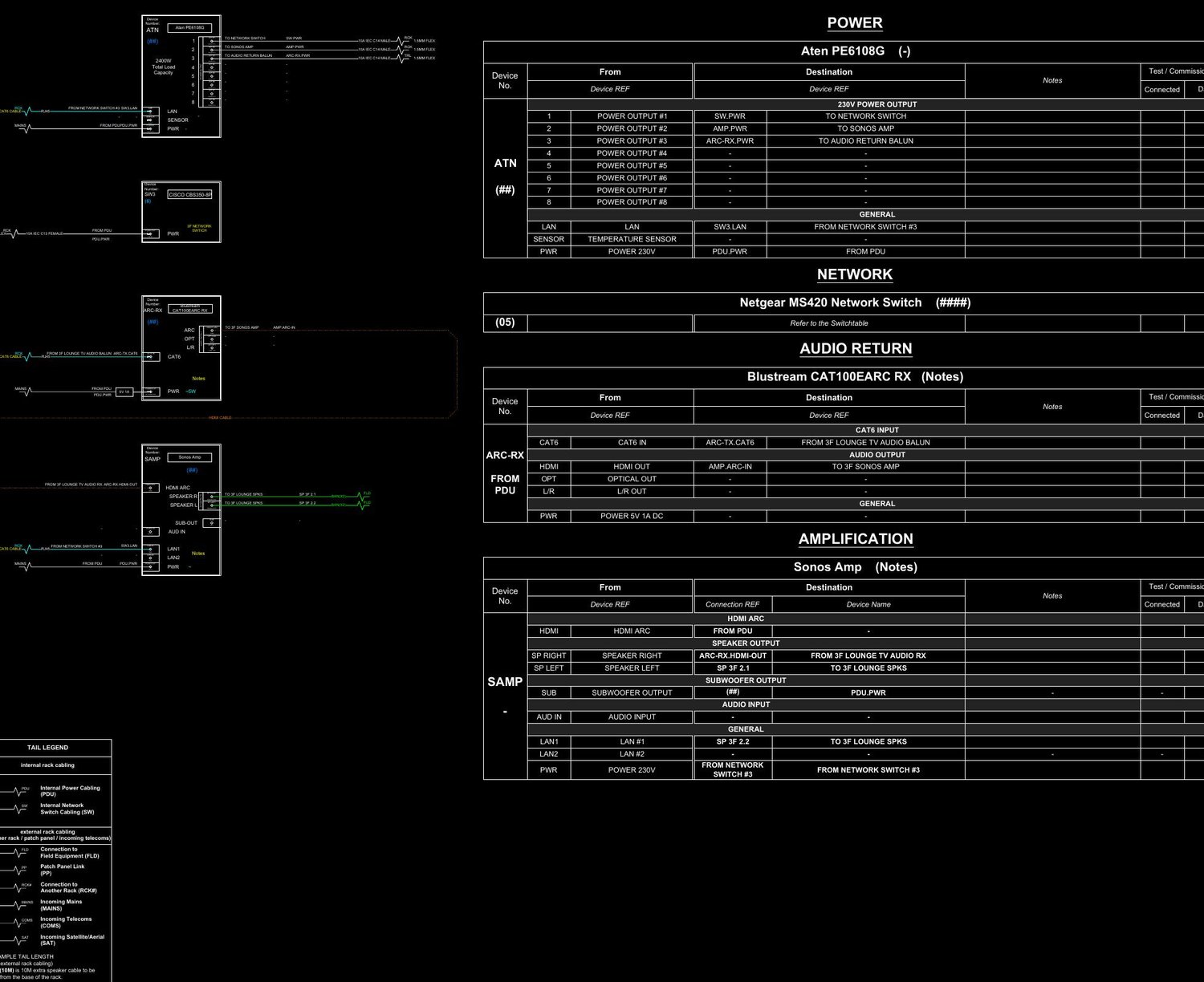

Audio return
Receiver outputHDMI OUTAmplifier inputAMP.ARC-IN
The schedule pairs the receiver’s HDMI output with the amplifier’s ARC input. One connection recorded in the drawing.
