Construction Details
AV integration details for a clean architectural finish.
- Type
- AV construction details
- Scope
- Architectural integration detailing
- Tools
- Screen back-box detailing / Curtain-track clearances / Joinery sections / Tolerance set-out

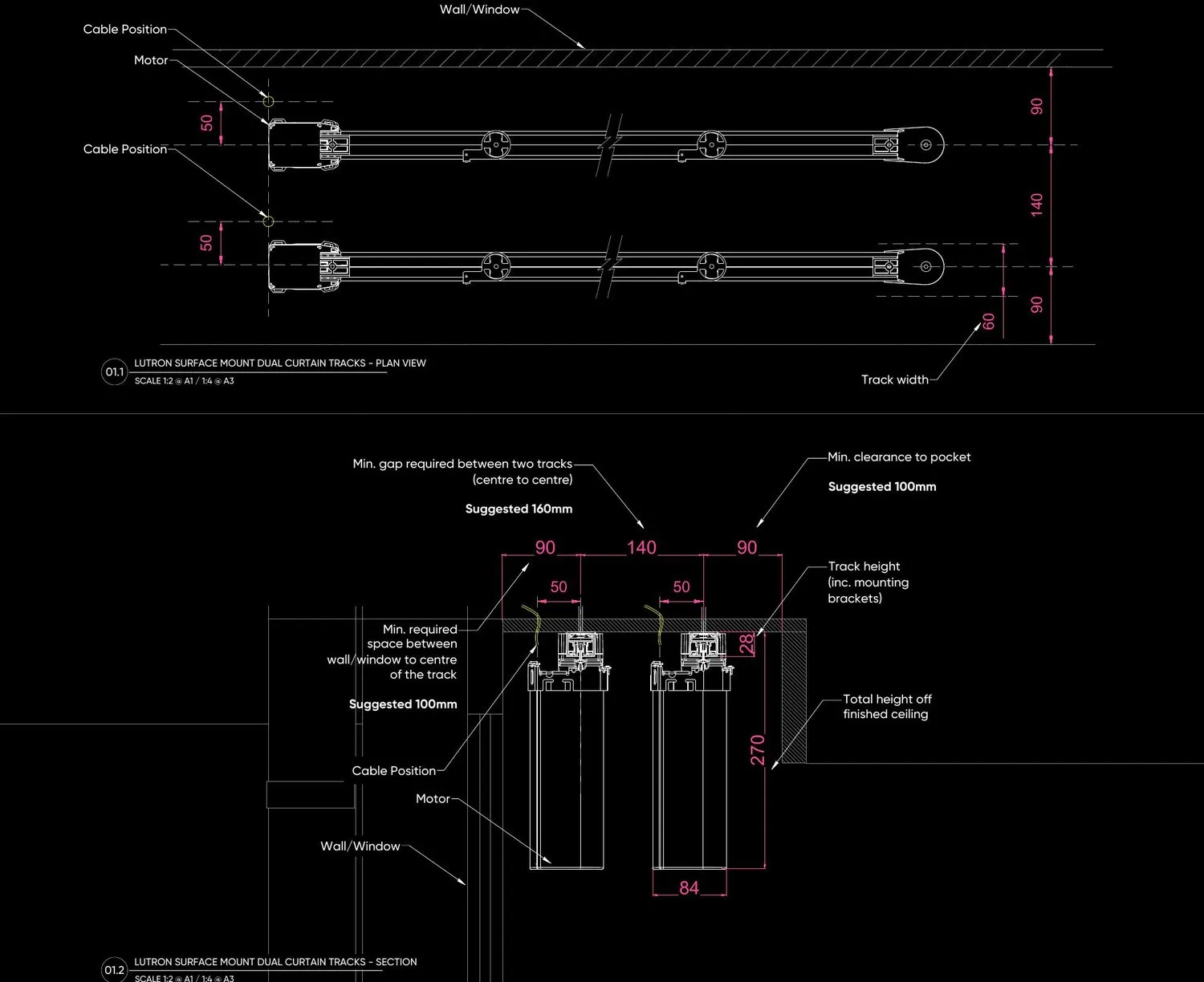

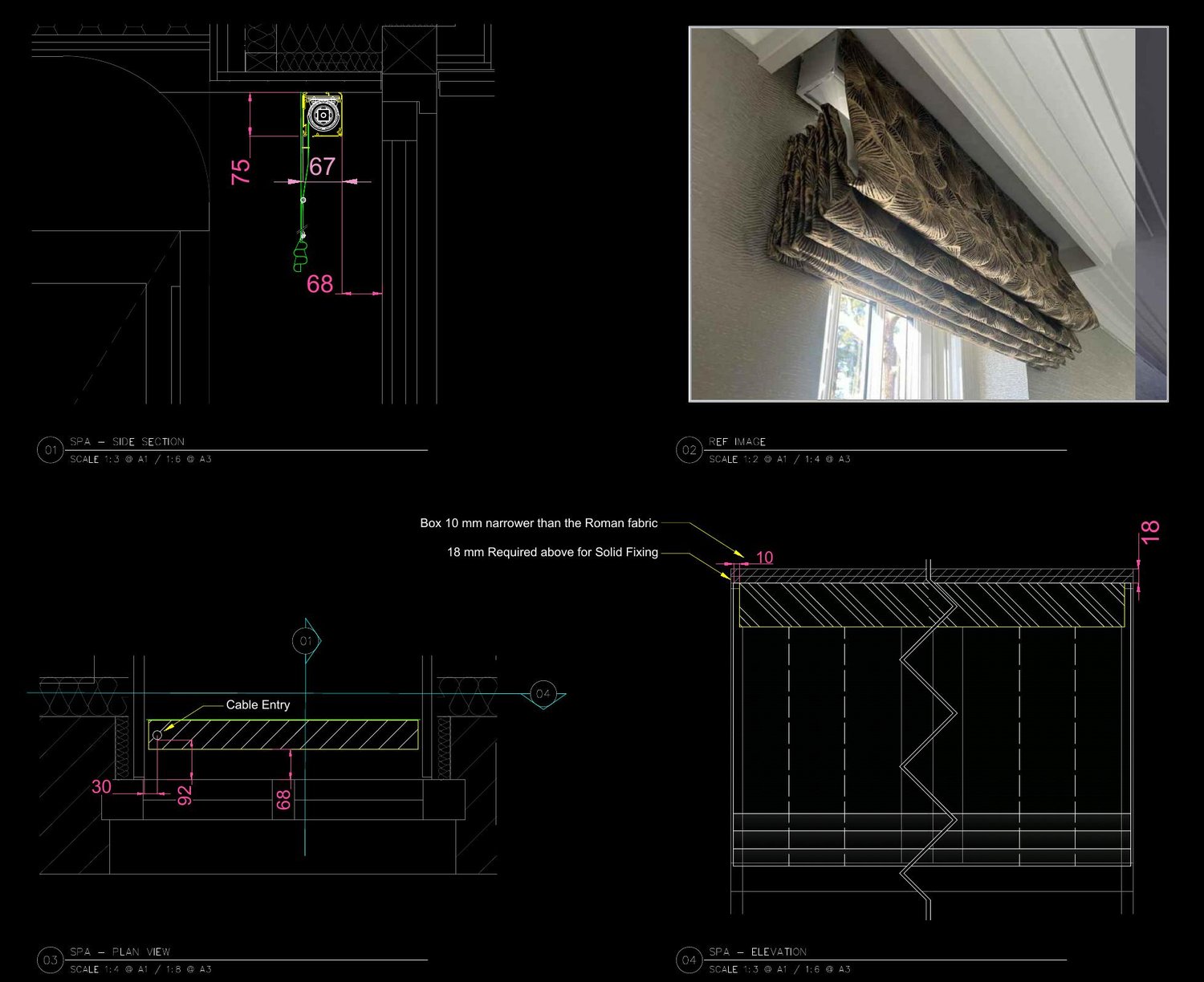

A set of construction details resolving AV within the architecture: screen back-box tolerances, curtain-track clearances and joinery sections. The drawings give the trades exact set-out: adhesive allowances, glass thickness and mounting clearances, so the technology disappears into a clean finish.
Architectural interface
Resolve the junctions between AV, window treatment and joinery.
Set-out decisions
Make allowances, mounting clearances and service positions explicit for the trades.
Drawing record
The sheets show intended set-out. Site tolerance measurements are not included.
